Description
Description
KD Scientific Syringe Pump
The KD scientific syringe pump 110 is a single syringe infuse and withdrawal pump with digital control and a two-program capacity. This syringe infusion pump accommodates one syringe that can be sized between 0.5ul to 60ml and has a broad flow rate range of 1.26pl/min up to 88.28ml/min. This sturdily constructed syringe pump has a complete metal chassis for stability and can be used in environments with 4°C to 40°C and 20% to 80% RH non-condensing conditions.
The KD scientific syringe pump 110 has robust onboard software that allows users to select target volume or time values, choose their flow rate, and create up to two programs with 50 steps each. Users can easily navigate and set up their syringe pump through the high-resolution full-color touch screen, which can then be locked to prevent accidental tampering. The micro-stepping motor has up to 30 lbs/13kg of force and can be used continuously.
Specifications
Specifications
KD Scientific Syringe Pump Specifications:
| Accuracy | ±0.5% |
| Syringes (Min/Max) | 0.5 µl to 60 ml |
| Flow Rate | Minimum (0.5 µl syringe): 1.28 pl/min |
| Maximum (10 ml syringe): 25.99 ml/min | Maximum (10 ml syringe): 25.99 ml/min |
| Maximum (60 ml syringe): 88.28 ml/min | Maximum (60 ml syringe): 88.28 ml/min |
| Display | 4.3 WQVGA TFT Color Display with Touchpad |
| Non-Volatile Memory | Stores all Settings |
| Connectors | RS485 – IEEE-1394 6 pos
USB – Type B I/O & TTL – 15 pin D-Sub Connector |
| Linear Force (Max) | 13.6 kg (30 lb) @ 100% Force Selection |
| Drive Motor | 0.9 Stepper Motor |
| Motor Drive Control | Microprocessor with 1/16 micro-stepping |
| Number of microsteps per one rev.of Lead Screw | 15,360 |
| Step Revolution | 0.069 µm/step |
| Step-Rate – Minimum | 27.5 sec/µstep |
| Step-Rate – Maximum | 26 u sec/µstep |
| Pusher Travel Rate – Minimum | 0.15 µm/min |
| Pusher Travel Rate – Maximum | 159 mm/min |
| Operating Temperature | 4°C to 40°C (40 °F to 104°F) |
| Storage Temperature | -10° C to 70 °C (14°F to 158°F) |
| Humidity | 20% to 80% RH non condensing |
| Mode of Operation | Continuous |
| Dimensions | 9x9x6” |
| Weight | 5lbs |
| Power | 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse |
Included
Included
Included with this Infusion Pump
KD Scientific Syringe Pump | CAT# 78-8110 | MSRP: $9649.00
Touch Screen Controller
User Manual
120V Power Cord
30-Day Warranty
Notes
Notes
Technical Notes
This KD Scientific Syringe Pump has been thoroughly inspected and operates without issue. All of our lab equipment comes backed by our standard warranty. Should you have any questions, please don’t hesitate to contact us.
Video
Video

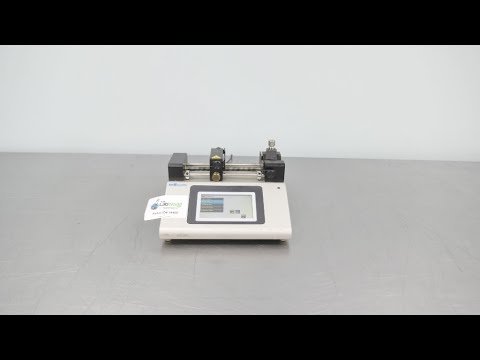

KD Scientific Syringe Pump Video
